The Quadricycle Build Story

17th March 2010

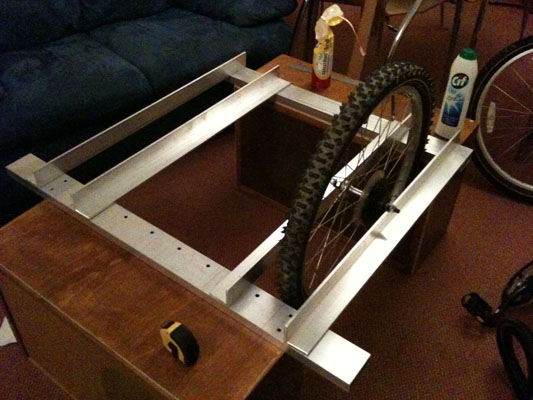

Working out rear wheel support spacing in the living room:
Posted Image
I'm glad I did this, as the measurements I originally drew on the computer turned out to be incorrect- in that I'd set the spacing at 170mm (ever so slightly shorter than the axel :s)

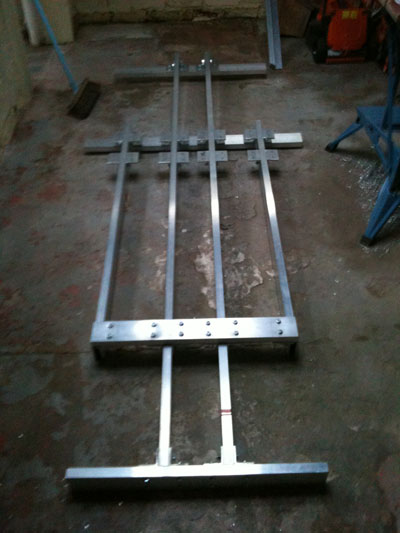

Looking from the front of the bike towards the back, the latest additions are the two cross pieces towards the rear:
Posted Image
The remaining right angle brackets that you can see about 2/3 of the way back are for the seat supports to bolt onto.

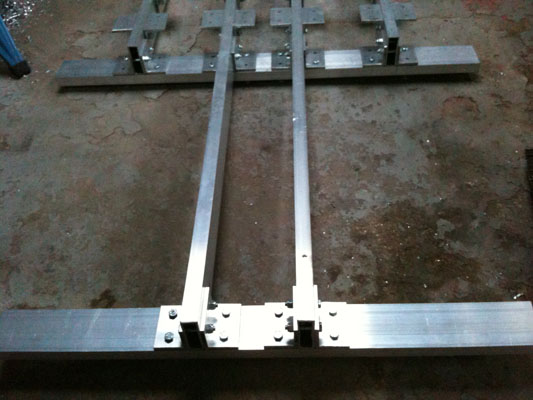

A close up of the new bits, looking from above the back of the bike:
Posted Image

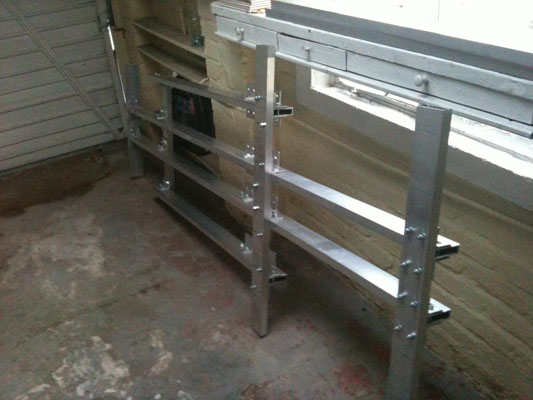

And finally an overall view of the chassis from below, up against the garage wall:
Posted Image
